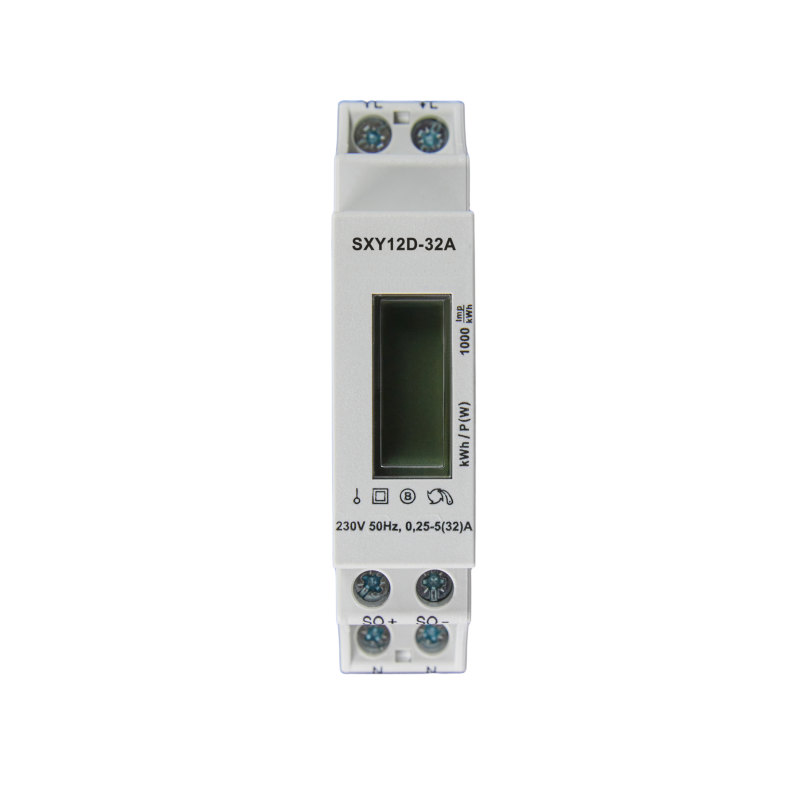

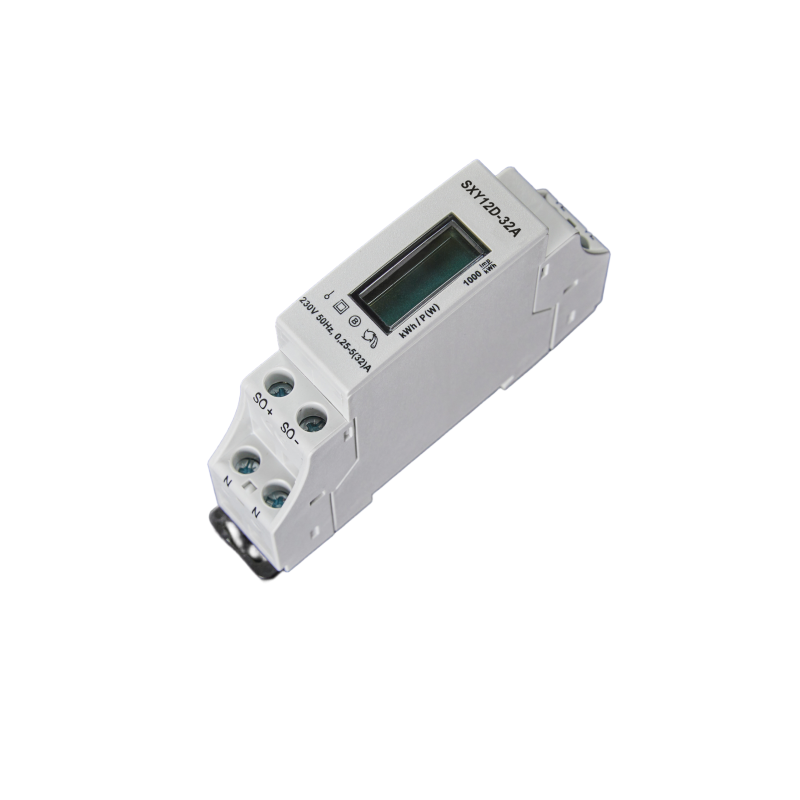

SXY12D-32A/65A DIN Rail Single Phase MID Energy Meter with Pulse Output

Single-phase MID-certified energy meter designed for compliance-driven residential and light commercial applications. It supports accurate measurement of voltage, current, frequency, power and active energy within structured metering environments.

The meter features a compact 1-DIN modular design (18mm width), enabling efficient installation in distribution panels and space-constrained systems. A white backlit LCD ensures clear and reliable data visibility.

Equipped with pulse output, the SXY12D supports integration into external monitoring and data collection systems. MID certified in accordance with EU Directive 2014/32/EU (Certificate No. 0120/SGS0207), it is suitable for regulated markets and compliance-based project requirements.

Designed for stable performance, easy installation and consistent operation in structured deployment environments.

Start a Project Discussion

â—† Features

â—Ž DIN-rail mounting, 1 Module 18mm Width

â—Ž Pulse Output

â—Ž LCD with backlight

â—Ž Multi-measurement: kWh, W, V, A, Hz, etc

â—Ž With super capacitor, the LCD is also legible twice within a period of 2 weeks without power supply.

â—Ž When the phase conductor is missing or the current direction is wrong ‘false’ and the corresponding phase conductor are indicated on the display.

â—† Technical Specifications

Essential information

ModelTypeRated Voltage(Un)Rated Current(Ib)Pulse constantFrequencyDimensions(H×W×D)mm
SXY12D-32ASinglePhase230V5(32)A2000imp/kWh50Hz82.5×18×58
SXY12D-65A10(65)A

Electrical Characteristics

Operational VoltageExtended RangeInternal ConsumptionAccuracy Class
0.9Un～1.1Un0.8Un～1.15Un<0.4WClass B

Performance Criteria

Storage and operating humidityAnnual average value â‰¤75%
Operating temperature-40℃~+70℃
Storage and transport temperature-40℃~+70℃
International standardIEC62053-21/EN50470-1/EN50470-3
Mechanical environmentM1
Electromagnetic environmentE2
Protection classIP51(indoor)

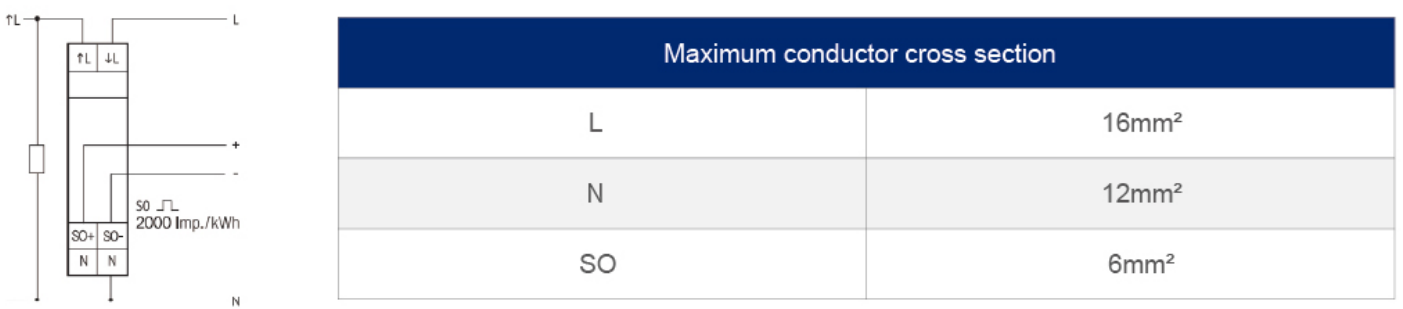

Typical connection

12D
Maximum conductor cross section
L16mm²
N12mm²
SO6mm²
