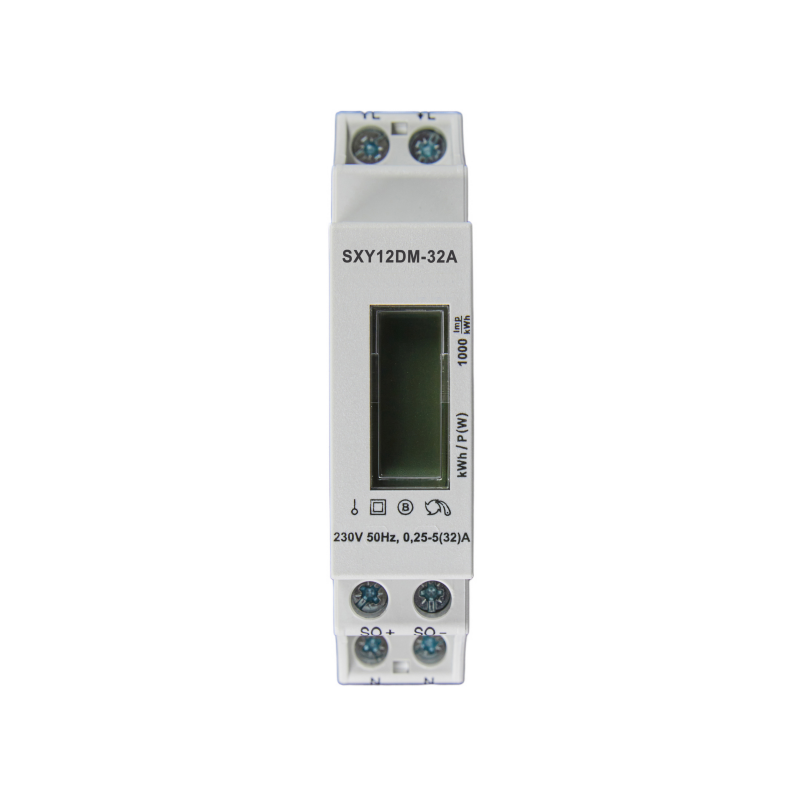

SXY14DRS-32A / SXY12DM-32A DIN Rail Single Phase MID Smart Energy Meter (RS485 / M-Bus)

Single-phase MID-certified smart energy meter designed for compliance-driven and integration-oriented metering environments. Supporting RS485 (Modbus) or M-Bus communication, it enables reliable remote monitoring and system-level data collection.

The meter provides accurate measurement of voltage, current, frequency, power and active energy. A white backlit LCD ensures clear readability across installation conditions.

With a compact 1-DIN modular design (18mm width), the unit is optimized for distribution panel integration and space-constrained installations. It is suitable for residential, EV charging, industrial and utility applications requiring structured monitoring and communication capability.

MID certified in accordance with EU Directive 2014/32/EU (Certificate No. 0120/SGS0207), supporting deployment in regulated markets and compliance-based projects.

Start a Project Discussion

◆ Features

◎ RS485 Modbus/M-bus communication

◎ Din-rail mounting,1 Module 18mm Width

◎ LCD with backlight

◎ Multi-measurement:kWh,W,V,A,Hz,etc

◎ With supper capacitor,the LCD is also legible twice within a period of 2 weeks without power supply.

◎ When the phase conductor is missing or the current direction is wrong ‘false’ and the corresponding

     phase conductor are indicated on the display.

◆ Technical Specifications

Essential information

ModelTypeRated Voltage(Un)Rated Current(Ib)Pulse constantFrequencyDimensions(H×W×D)mm
SXY14DRS-32ASingle Phase230V5A(32)A2000imp/kWh50Hz82.5×18×62.5
SXY12DM-21A

Electrical Characteristics

Operational VoltageExtended RangeInternal ConsumptionAccuracy Class
0.9Un～1.1Un0.8Un～1.15Un<0.2WClass B

Performance Criteria

Storage and operating humidityAnnual average value ≤75%
Operating temperature-25℃~+55℃
Limiting operating temperature-40℃~+70℃
Storage and transport temperature-40℃~+70℃
International standardIEC62053-21 / EN50470-1/ EN50470-3
Mechanical environmentM1
Electromagnetic environmentE2
Protection classIP51(indoor)

Modbus Communications(SXY14DRS-32A)

Interface StandardRS485
ProtocolModbus RTU(default) or BR14 or DL/T 645
Baud Rate1200 / 2400 / 4800 / 9600 / 57600 bps
Communication Address1-250
Maximum bus loading64 pcs
Transmission Distance≥1000m
ParityEVEN / ODD / NONE
Data Bits8
Stop Bits1

M-bus Communications(SXY12DM-32A)

Interface StandardM-Bus
ProtocolMbus-CR(default)or DL/T 645
Baud Rate1200 / 2400 / 4800 / 9600 bps
Communication Address1-250
Transmission Distance≥1000m
ParityEVEN / ODD / NONE
Stop Bits1 or 2
Response Time<60 ms(read / write)

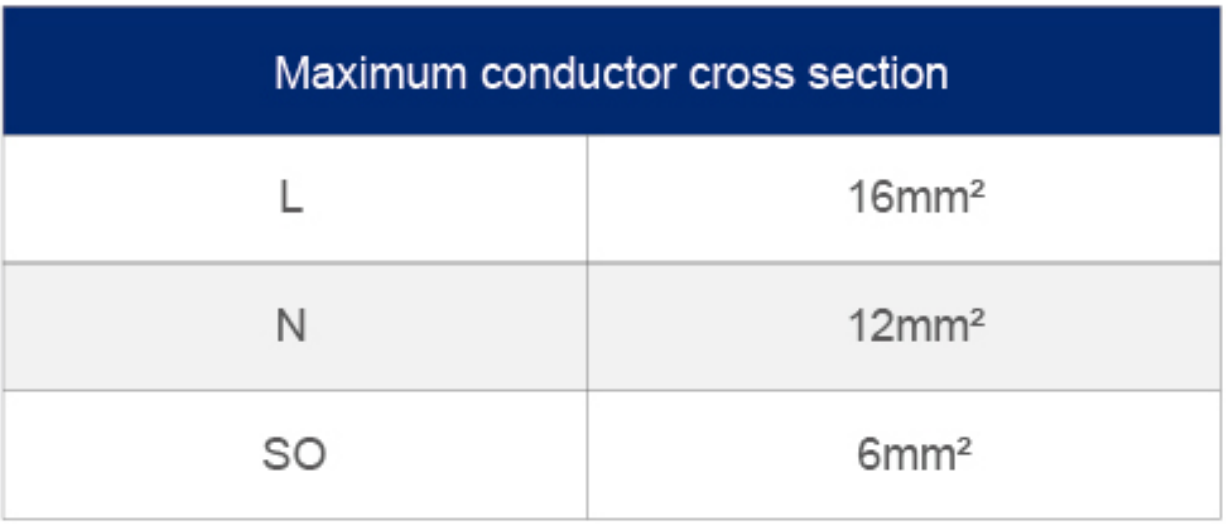

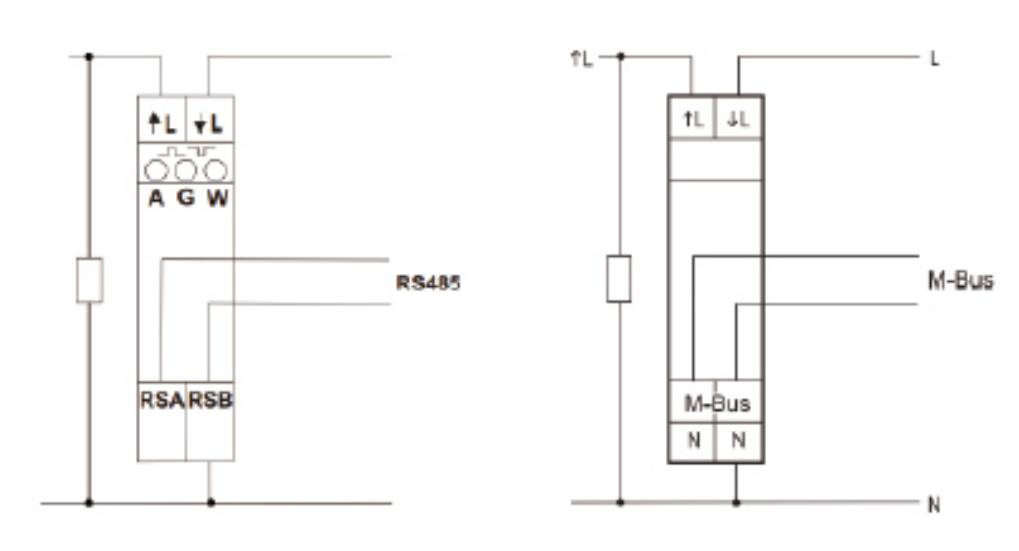

Typical connection
