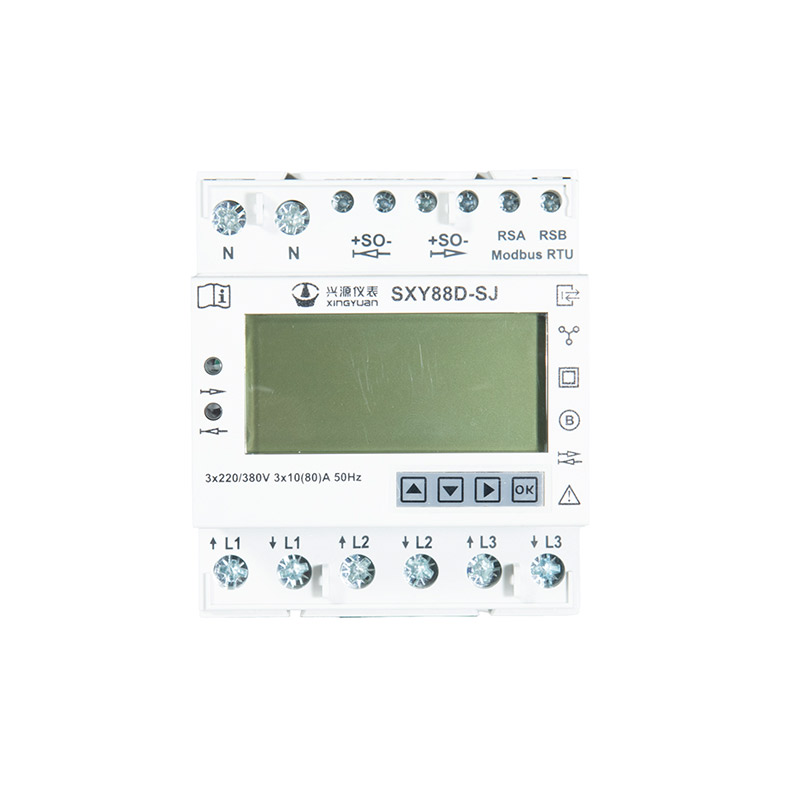

SXY88D DIN Rail Three Phase MID Energy Meter

Three-phase MID-certified energy meter designed for compliance-driven and integration-oriented metering environments. Supporting direct input up to 80A, it is suitable for residential, commercial, EV charging, industrial and utility applications.

The meter enables accurate measurement of voltage, current, frequency, power and active energy, with optional bi-directional energy monitoring for import and export measurement.

Equipped with RS485 or M-Bus communication, the SXY88D supports remote monitoring and system-level data integration. Dual-tariff functionality is supported via external signal switching, enabling flexible tariff management in structured deployment environments.

With a 4-DIN modular design (72mm width), the unit is optimized for distribution panel installation while maintaining high accuracy, reliability and ease of installation.

MID certified in accordance with EU Directive 2014/32/EU (Certificate No. 0120/SGS0699), supporting deployment in regulated markets and compliance-based projects.

Start a Project Discussion



Features

โ—Ž RS485/M-Bus communications,supports bidirectional metering/positive metering.

โ—Ž Double-tariff

โ—Ž Din-rail mounting,4 Modules 70mm Width

โ—Ž LCD with backlight

โ—Ž Multi-measurement:kWh,W,V,A,Hz,etc

โ—Ž With supper capacitor,the LCD is also legible twice within a period of 2 weeks without power supply.

โ—Ž When the phase conductor is missing or the current direction is wrong ‘false’ and the corresponding phase conductor are indicated on the display.

Technical Specifications

Essential information

ModelTypeRated Voltage(Un)Rated Current(Ib)Pulse constantFrequencyDimensions(Hร—Wร—D)mm
SXY88D-SHThree Phase3ร—230V/440V80A1000imp/kWh50Hz82.5ร—72ร—62.5
SXY88D-SJThree Phase3ร—230V/440V80A1000imp/kWh50Hz82.5ร—72ร—62.5

Electrical Characteristics

Operational VoltageExtended RangeInternal ConsumptionAccuracy Class
0.9Un๏ฝž1.1Un0.8Un๏ฝž1.15Un<0.2WClass B

Performance Criteria

Storage and operating humidityAnnual average valueโ‰ค75%
Operating temperature-25โ„ƒ~+55โ„ƒ
Storage and transport temperature-40โ„ƒ~+70โ„ƒ
International standardIEC62053-21/EN50470-1 /EN50470-3
Mechanical environmentM1
Electromagnetic environmentE2
Protection classIP51(indoor)

M-bus Communications(DSZ12WDM-3ร—5A)

Interface StandardMbus or RS485
ProtocolModbus RTU(default) +EN13757
Baud Rate300/600/1200/2400/4800/9600bps(M-Bus communication)300/600/1200/2400/4800/9600/14400/19200/38400/57600/115200bps(RS485   communication)
Communication Address1-250
Maximum bus loading64 pcs
Transmission Distanceโ‰ฅ1000m
ParityEVEN/ODD/NONE
Data Bits8
Stop Bit1

Typical connection

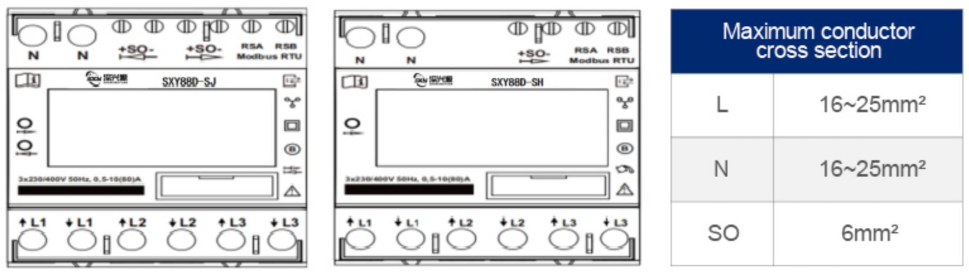

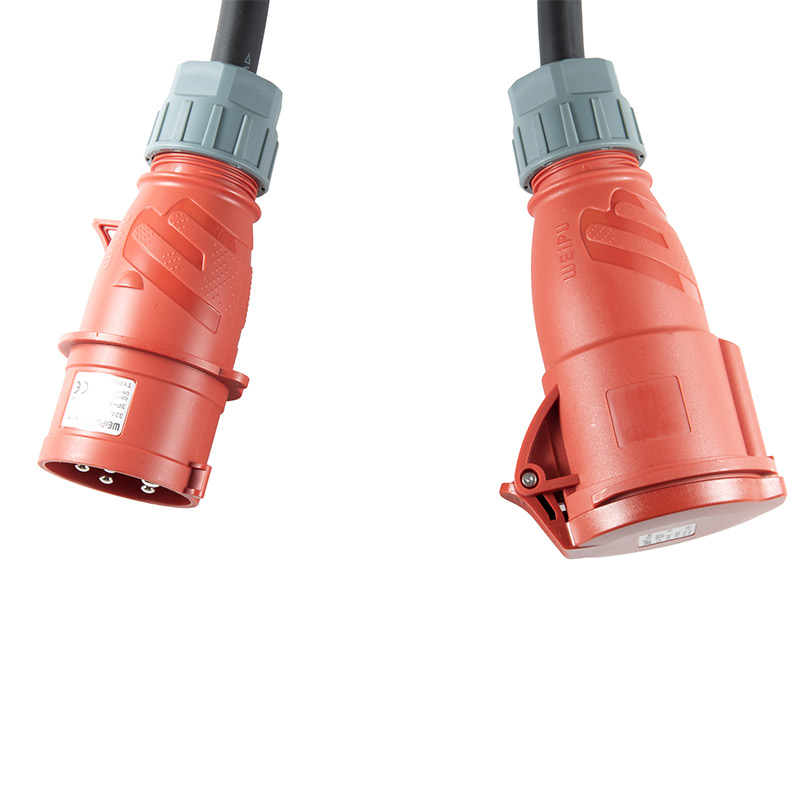

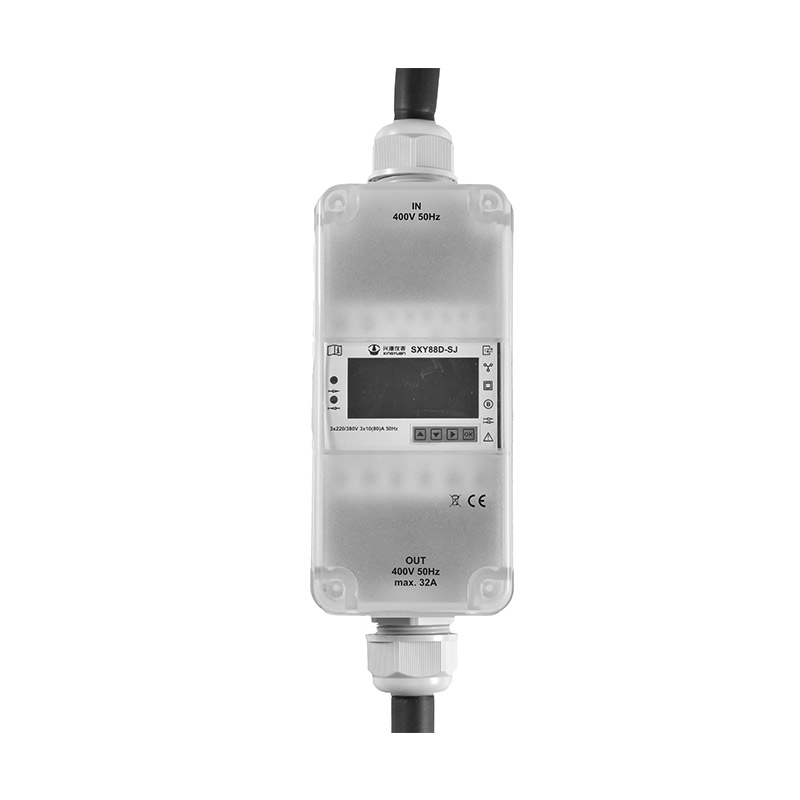

Portable version
