Product Features

◎High precision and wide range, R=800, 630, 500, 400, 315, 250, 200; Q₂/Q₁: 1.6;

◎High flow ability, no moving parts inside, no blockage, and low pressure loss;

◎Low starting flow, 0.016m³/h (DN50), much lower than mechanical water meters

◎High stability design, effective application of neural networks, forming a closed-loop effective processing system;

◎Anti-disturbance flow design: unique flow channel design combined with special multi-channel algorithm to achieve U0D0;

◎Low power consumption design: optimized hardware and software, built-in lithium battery with a service life of up to 10 years, no need to replace the battery during the period;

◎Anti-fouling design: adaptive adjustment of signal acquisition data to achieve zero impact of fouling on signals;

◎Anti-bubble design, real-time tracking of measurement data, combined with powerful data caching, can track fluid states under different states to achieve accurate metering;

◎Anti-surge design, effectively preventing metering errors caused by long-term non-use or insufficient pipe filling;

◎IP68 protection grade design, modular glue sealing, integrated with mechanical sealing to achieve 360° waterproof design;

◎Anti-disassembly design, hidden fixing screws, glue sealing at joints, and plastic lead sealing to prevent damage;

◎Easy to install, U0D0; can be installed at any angle.

Performance Parameters

Flow Parameters

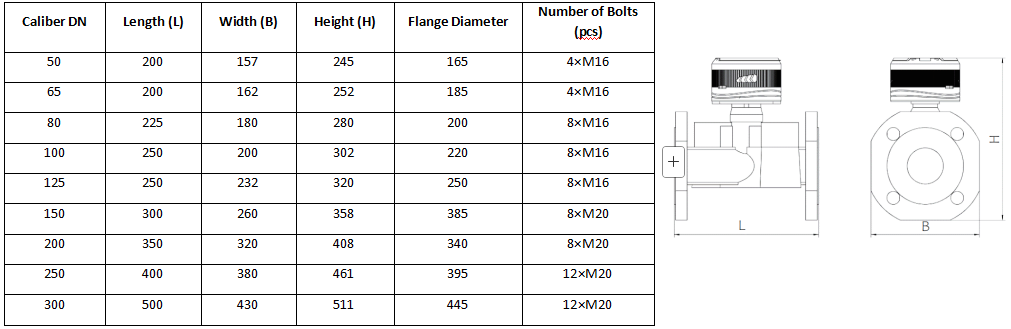

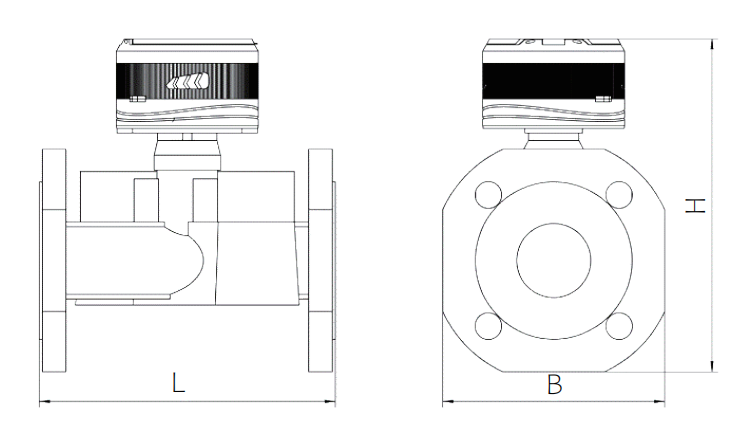

Dimension Parameters
