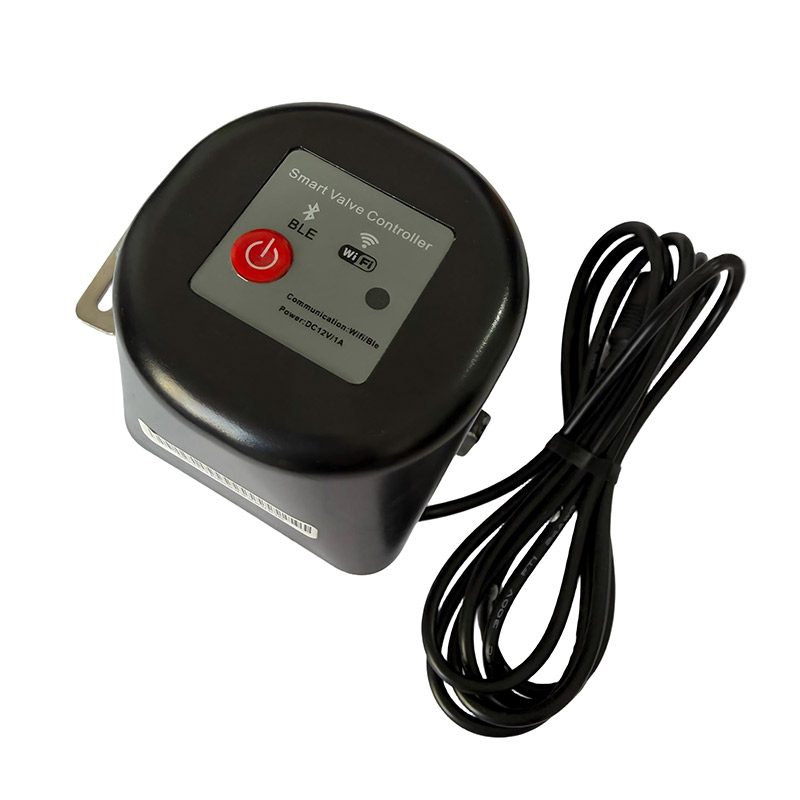

Valve Controller

Valve controller designed for remote control and automation of water and gas valves in smart infrastructure and distributed system environments. It enables wireless operation and supports integration into centralized monitoring and control systems.

The unit is compatible with standard valve sizes (DN15–DN25) and supports stable operation with controlled opening and closing functions. Designed for reliability and ease of deployment, it enables utilities and system operators to manage flow control remotely.

With support for remote connectivity, the controller can be integrated into smart metering, irrigation and infrastructure management systems, enabling coordinated operation within AMI and IoT environments.

Built for stable performance, the device offers consistent torque output and controlled actuation timing, ensuring reliable valve operation under varying conditions

Start a Project Discussion

Product Specifications

Power Supply: DC12V/1A

Valve Pressure Rating: 1.6MPa

Compatible Valve Sizes: DN15, DN20, DN25

Valve Closing Time: 5–10 seconds

Valve Opening Time: 5–10 seconds

Torque: 30–60 kgf·cm

Dimensions: 100mm × 90mm × 70mm

Installation Steps

① Attach the mounting bracket to the Smart valve handle (do not fully tighten screws yet).

② Secure the mounting bracket to the water/gas pipe.

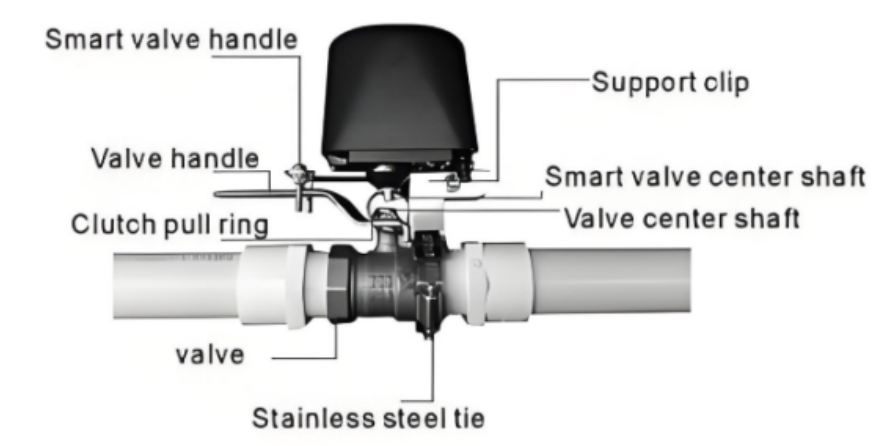

③ Align the output shaft of the valve controller with the axis of the valve handle (see diagram). Tighten the bracket screws. After installation, manually pull down the clutch pull ring and test the valve handle to ensure proper positioning.

④ Tighten the screws on the valve handle.

⑤ Connect the 12V/1A power adapter.

Indicator Light Status

The indicator light has been on: Connected and online.

The indicator light is flashing: Connecting in progress.

Troubleshooting Guide

① Valve controller does not fully open/close:

Check whether the output shaft of the valve controller and the valve handle are on the same shaft.

Misalignment may cause incomplete operation or motor burnout.

② Valve Stuck During Operation:

Pull down the clutch pull ring and rotate the handle 90° until the valve operates smoothly. If resistance persists, reinstall the valve.

Package Contents

① Valve Controller ×1

② User Manual ×1

③ 12V/1A Power Adapter ×1

④ Accessories (Stainless steel tie) ×1
